Screw to Connect Flat Face

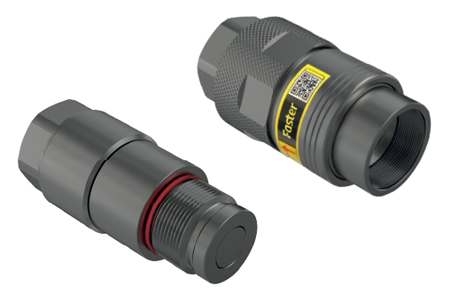

Screw-to-Connect Flat Face couplings, suitable for heavy duty applications. Equipped with a safety sleeve to help preventing accidental disconnections due to vibrations. Equipped with a clear and intuitive visual check system, conrming the connection has occurred (green ring) or not (red ring). No hose torsion during connection and disconnection thanks to the internal bearing system.
The Zinc-Nickel plating guarantees a remarkable resistance to corrosion. Thanks to its peculiar design, FHV couplings can also be connected and disconnected entirely by hand, without any tools.
Connectable with residual pressure in the Male half up to 35 MPa. Working Pressure up to 53 MPa and †flow rate up to 1000 l/min.
Available sizes: 3/8”, 1/2”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”.
